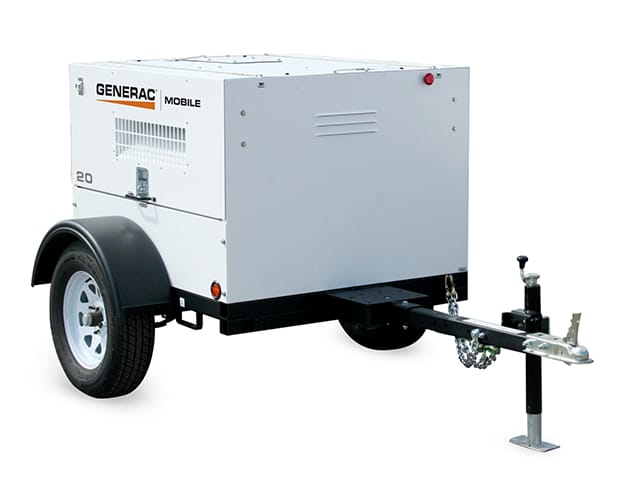

Mobile Generator | 20 kVA / 16 kW | Diesel | 2.2L

Model #: MLG20IF4

Request Pricing
Spec Sheet (PDF) Owner Owner's Manual Parts Manual Parts Manual Mobile Linecard (PDF)

Mobile Generator | 20kVA / 16kW | Diesel | 2.2L

Affordable Mid-Sized Power

The MLG20IF4 diesel generator provides affordable, single phase power with just the right combination of hardworking output and efficiency.


Tough

  • Full tubular steel frame, with lockable enclosure
  • Durable, fade resistant, white baked on powder coat finish
  • Stainless steel hinges, exterior hardware and pad lockable door latches

Proven Reliability

  • CSA Certified
  • Automatic low oil level / high temp shutdown alerts
  • 70A main breaker
  • 2 year - 2,000 hour warranty
  • Marathon voltage regulation within +/- 1%

Easy to Use

  • Self-priming 4 cylinder Mitsubishi engine
  • External convenience outlets with individual breaker switches
  • External emergency stop switch

Specifications

Units:
kW/kVA Prime: 19kW/19kVA 19kW/19kVA
kW/kVA Standby: 20kW/20kVA 20kW/20kVA
Engine: Isuzu 4LE2TAG Isuzu 4LE2TAG
Standard Alternator: Marathon Electric 334CSA3028 Marathon Electric 334CSA3028
Controller: Power Zone Digital Controller Power Zone Digital Controller
Fuel Tank Capacity - Usable: 39.4 gal 149.2 L
Skidded Dry Weight: 1,525 lbs 692 kg
Skidded Wet Weight: 1,815 lbs 823 kg
Trailered Dry Weight: 1,750 lbs 794 kg
Trailered Wet Weight: 2,040 lbs 925 kg
Skidded Dimensions: 78 × 51 × 52 in 1.97 x 1.3 x 1.31 mm
Trailered Dimensions: 115 × 68 × 65 in 2.91 x 1.73 x 1.66 mm
Sound Rating in db: 70 dB(A) @ 23 ft (7 m) & Full Load 70 dB(A) @ 23 ft (7 m) & Full Load
Emissions Compliance: Tier 4 Tier 4
Fuel Type: Diesel Diesel
Power Source: 2.2 L 2.2 L
