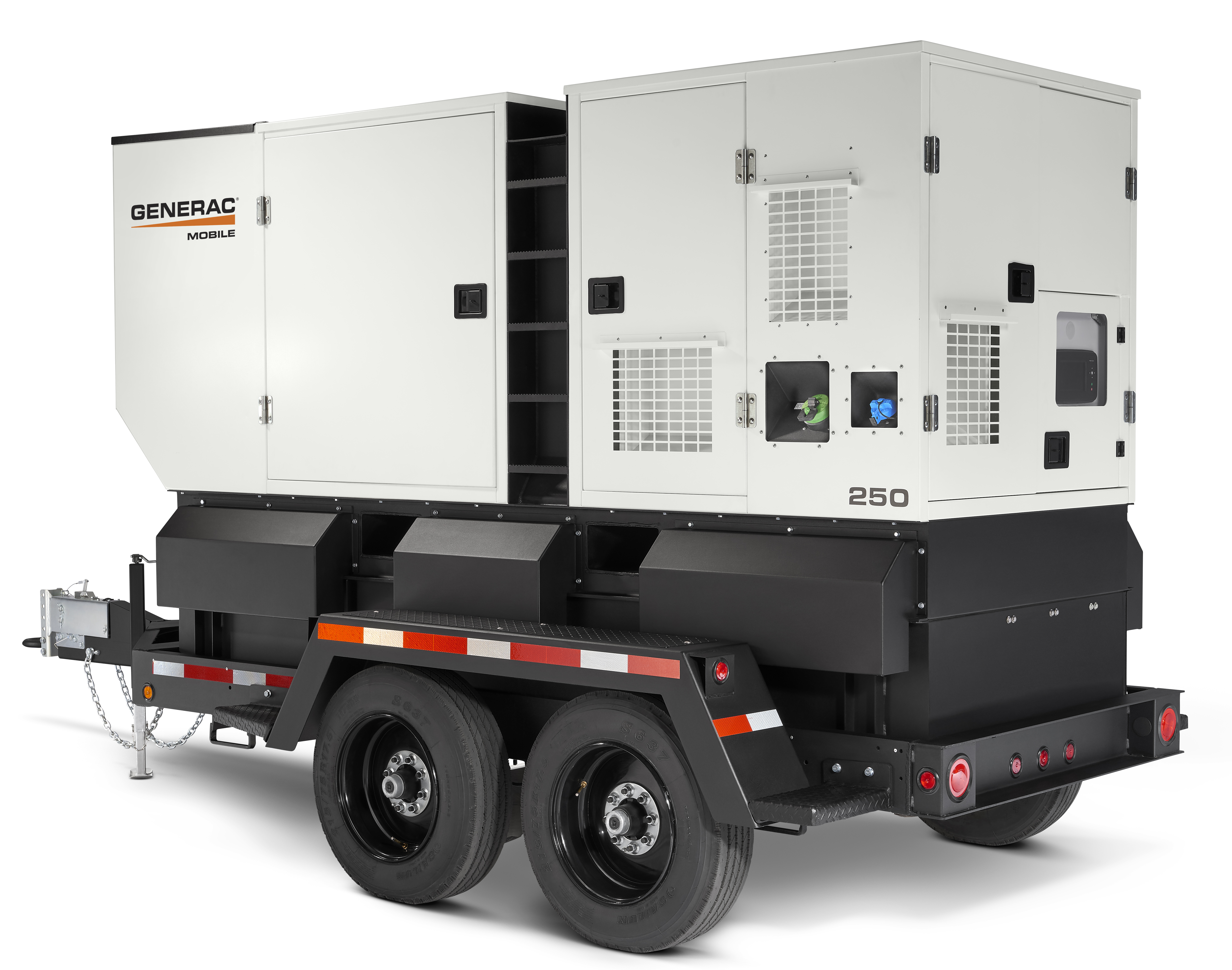

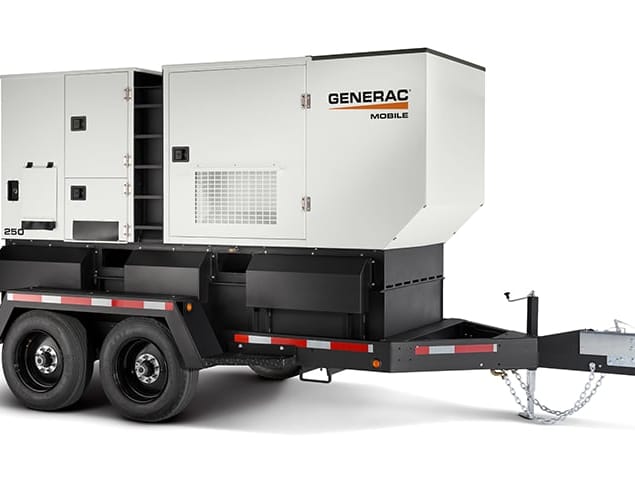

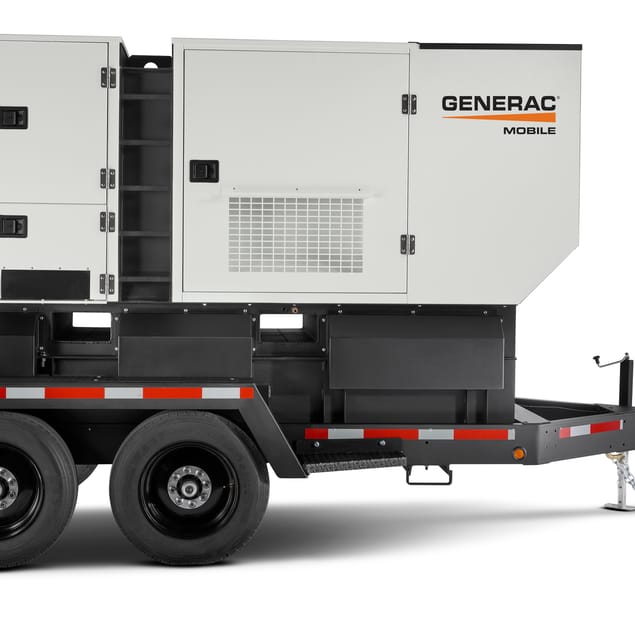

Mobile Generator | 250kVA / 200kW | Diesel | 6.8L

Model #: MDG250DF4

Request Pricing
Spec Sheet (PDF) Owner Owner's Manual Parts Manual Parts Manual Mobile Linecard (PDF)

200kW Prime Output | Mobile Diesel Generator

Powerful, Reliable, Full-Featured Final Tier 4 Power

The MDG250DF4 mobile diesel generator delivers maximum performance and versatility. The turbocharged, 6-cylinder John Deere® Final Tier 4 engine is reliable and durable. Selective catalytic reduction (SCR) exhaust after-treatment limits harmful emissions and minimizes soot buildup. The aluminum, sound-attenuated enclosure provides quiet operation and is rust proof for a long-lasting, attractive appearance.


Safe and Easy to Use

  • Simplified Controller- Deep Sea® DSE7310 with an easy-to-read status screen
  • A powerful processor with intuitive operation and real time operational data
  • Programmable controller providing flexible application capabilities
  • Distribution cables located away from controls for safer operation
  • Fully treaded fenders for enhanced traction during service

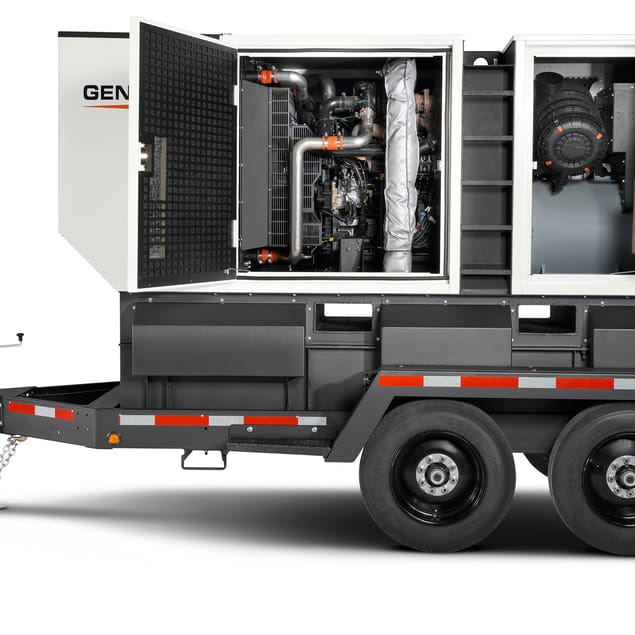

  • Wide doors for easy access during maintenance
  • Diesel oxidation catalyst (DOC) and selective catalytic reduction (SCR) aftertreatment components
  • 500 hour service interval

Powerful and Durable

  • 250 kVA Prime Power
  • 6.8 L turbocharged John Deere Final Tier 4 diesel engine
  • Sound attenuated, rust-proof aluminum cabinet
  • 2 year / 2000 hour warranty

Versatile

  • Single Phase - Three Phase switch
  • Operational at 60 Hz
  • Parallel-ready design accommodates up to 32 generators
  • Cold weather options allow for optimum performance in extreme cold conditions

Specifications

Units:
kW/kVA Prime: 250 200
kW/kVA Standby: 275 220
Engine: John Deere 6068HFG06 John Deere 6068HFG06
Standard Alternator: Marathon Electric 431CSL6206 Marathon Electric 431CSL6206
Controller: Deep Sea Electronics 7310 MKII Deep Sea Electronics 7310 MKII
Runtime @ 75% Load: 33 hours 33 hours
Fuel Tank Capacity - Usable: 343 gal 1,298 L
Skidded Dry Weight: 6,898 lbs 3,192 kg
Skidded Wet Weight: 9,411 lbs 4,269 kg
Trailered Dry Weight: 8,863 lbs 4,020 kg
Trailered Wet Weight: 11,376 lbs 5,160 kg
Skidded Dimensions: 145 × 60 × 85 in 3.7 x 1.5 x 2.1 mm
Trailered Dimensions: 208 × 86 × 104 in 5.3 x 2.2 x 2.6 mm
Sound Rating in db: 75 dB(A) @ 23 ft (7 m) @ 100% PRP 75 dB(A) @ 23 ft (7 m) @ 100% PRP
Operating Temperature Range: -40 to 158 -40 to 70
Emission Compliance: Tier 4 Tier 4
Power Output: 250 200
Fuel Type: Diesel Diesel
Power Source: 6.8 L 6.8 L
