Mobile Generator | 25kVA / 20kW | Diesel | 2.2L


Mobile Generator | 25kVA / 20kW | Diesel | 2.2L

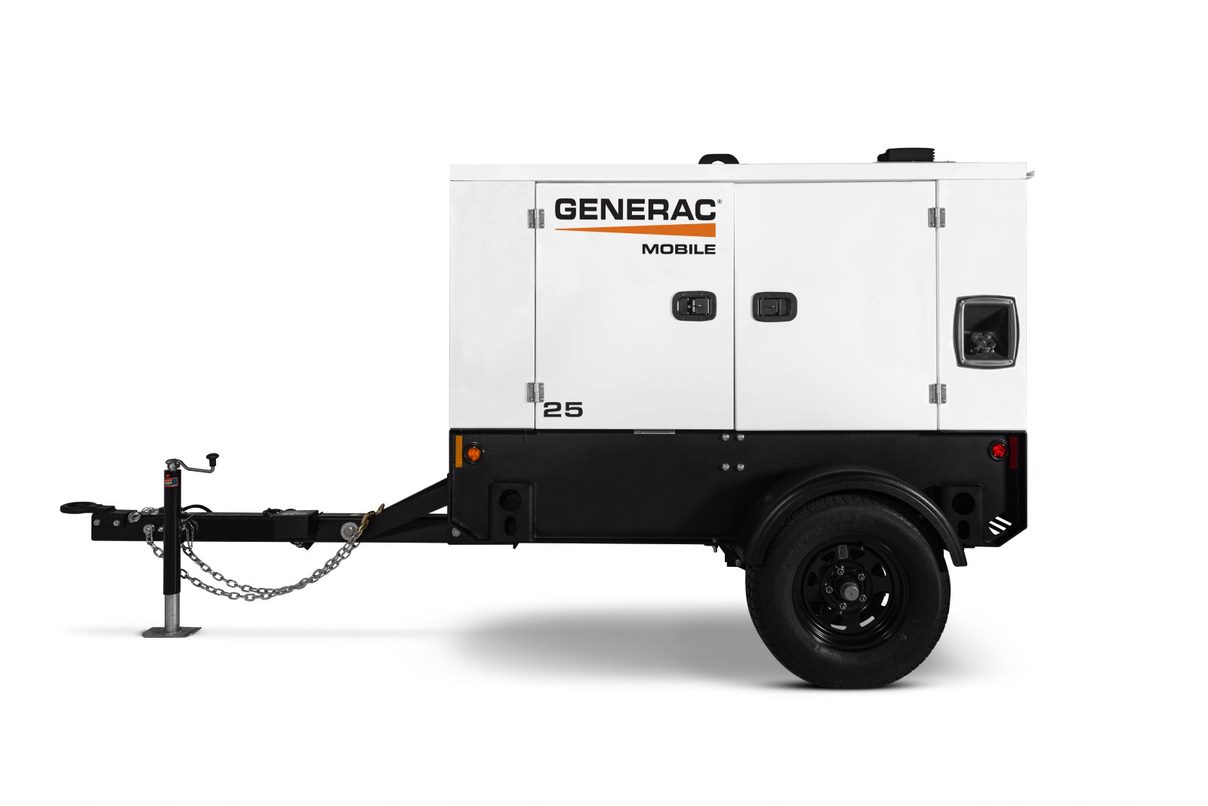

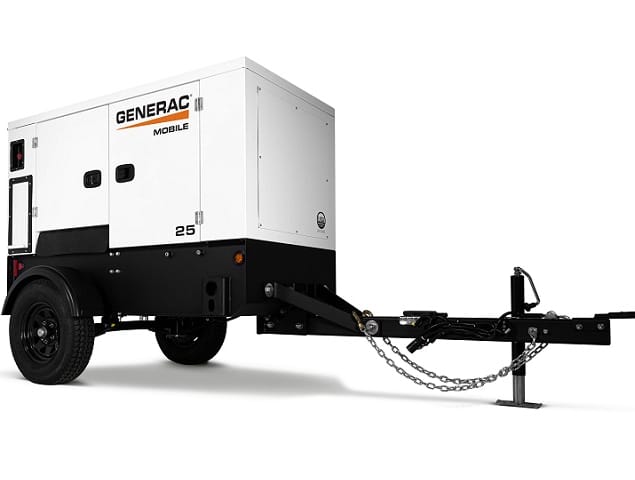

Quiet, easy power in a compact package - the MDG25IF4 Diesel Generator

The MDG25IF4 mobile diesel generator from Generac Mobile provides three-phase 25kVA prime power in a compact cabinet. The new cabinet design enables maximum space and transport efficiency while making the generator easy to maneuver and tow. The Final Tier 4 Isuzu engine is reliable and easy to maintain, requiring no diesel particulate filter (DPF). Standard safety features enhance safety and security on the job.


Compact

  • Compact size saves space on the job site
  • Small cabinet allows for 12 units on a flatbed truck
  • Integrated fork pockets and central lifting allow for easy of loading and unloading
  • Lightweight – can be towed by most work trucks and SUVs
  • Heavy gauge steel trailer EPA Tier IV Turbocharged, after-cooled diesel engine
  • All steel, rugged, square body design

Safe

  • External E-Stop is easy to locate and access in emergency situations
  • Interior cabinet and control panel lighting for enhanced visibility
  • Phase switch safety shutdown
  • Access doors with auto shutdown separates main breaker access from load cables; automatically shuts down unit if lug door is opened
  • Controller located on rear of unit away from power wires and service points and lockable for security and safety
  • Fuel access is lockable and located away from power distribution
  • LED Trailer lights

Easy to Use

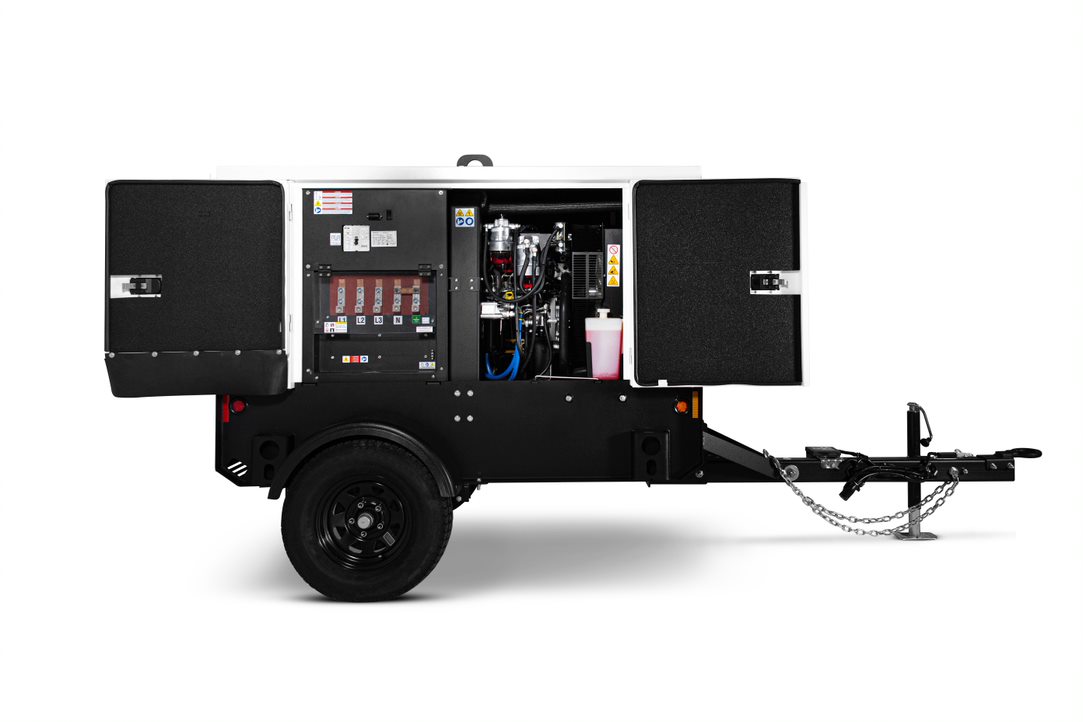

  • Large access doors allow for unobstructed access to service components and includes slam latches
  • Maximized service access with removable French style doors
  • No diesel particulate filter (DPF)
  • Load mitigation device available as option
  • Long, 28-hour run time, 56 gallon tank requires less fill-ups for more uptime
  • 13 warning and shutdown features

Specifications

Units:
kW/kVA Prime: 20kW/25kVA 20kW/25kVA
kW/kVA Standby: 25kW/31kVA 25kW/31kVA
Engine: Isuzu 4LE2TAGV08 Isuzu 4LE2TAGV08
Standard Alternator: Marathon Electric PM500 AVR Marathon Electric PM500 AVR
Controller: Deep Sea Electronics 7310 MKII Deep Sea Electronics 7310 MKII
Runtime @ 75% Load: 35 hours 35 hours
Fuel Tank Capacity - Usable: 56 gal 211 L
Skidded Dry Weight: 2,010 lbs 911 kg
Skidded Wet Weight: 2,450 lbs 1,111 kg
Trailered Dry Weight: 2,247 lbs 1,019 kg
Trailered Wet Weight: 2,771 lbs 1,256 kg
Skidded Dimensions: 76 x 36.37 x 53.5 in 1.93 x .92 x 1.35 mm
Trailered Dimensions: 139.25 x 51.75 x 64.75 in 3.53 x 1.31 x 1.64 mm
Sound Rating in db: 67 dB(A) @ 23 ft (7 m) @ Prime Power 67 dB(A) @ 23 ft (7 m) @ Prime Power
Operating Temperature Range: -40 to 158 -40 to 70
Emissions Compliance: Tier 4 Tier 4
Fuel Type: Diesel Diesel
Power Source: 2.2 L 2.2 L
