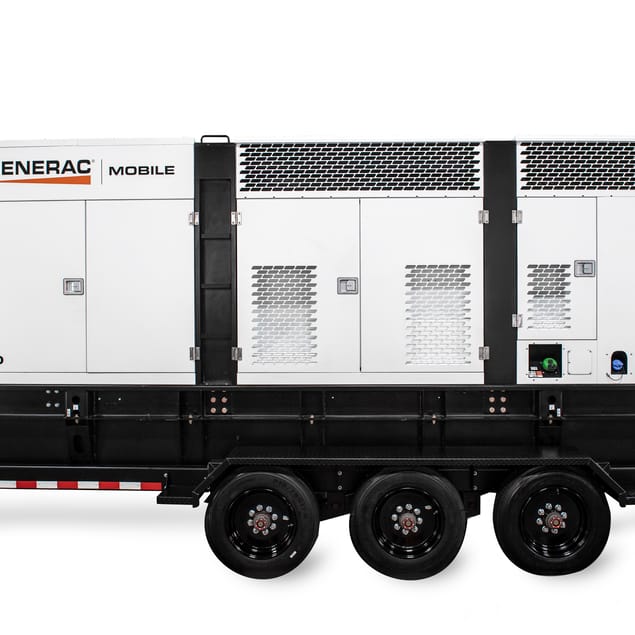

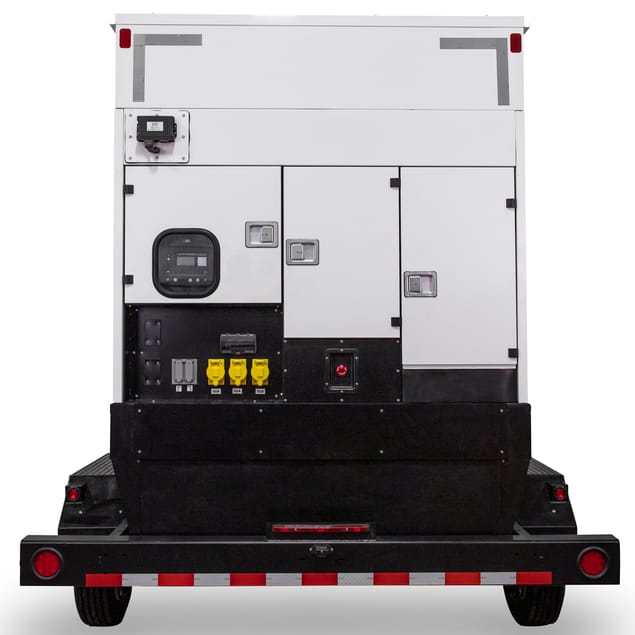

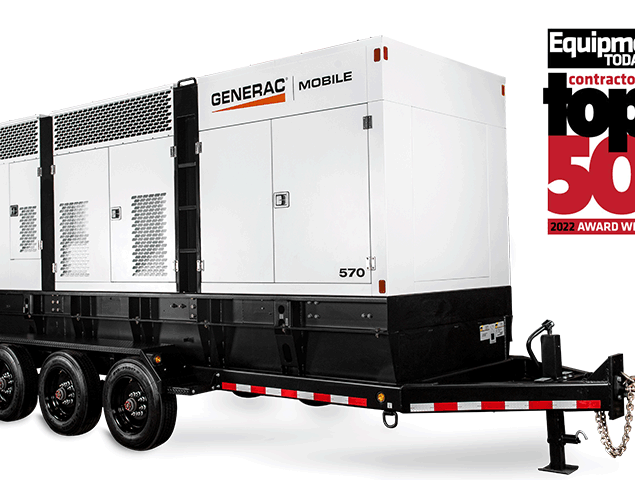

Mobile Generator | 570kVA / 456kW | Diesel | 18.1L

Energy that is Rental Ready​

Delivers 570 kVA prime power that is reliable, easy to maintain and versatile. The heavy duty engine has been proven in a variety of applications: remote job sites, heavy duty construction, extreme weather environments. The steel, sound-attenuated enclosure provides quiet operation and is durable for a long-lasting, attractive appearance.



Easy to Use

  • Rental ready​
  • Intuitive controls​
  • Load Management System​
  • Constant worksite power​
  • Wet Stack Mitigation technology: Exhaust Temperature Management (ETM)​
  • Durable frame, fuel tank, enclosure and lift structure​

Powerful

  • Perkins 18.1 L engine
  • 480, 240 and 208 V 3-phase output and 120/240 V 1-phase convenience receptacles​
  • Deep Sea Controller​
  • Engine Exhaust Temperature Management (ETM) wet stack mitigation technology

Options

  • Alternators for increased motor starting  and 600 V capabilities​
  • Trailer and Skid configurations​
  • Fuel tank containment​
  • Paralleling​
  • Extreme Cold Weather operation features​
  • Spare tires and storage boxes

Specifications

Units:
kW/kVA Prime: 456kW/570kVA 456kW/570kVA
kW/kVA Standby: 500kW/625kVA 500kW/625kVA
Engine: Perkins 2806F-E18TAG1 Perkins 2806F-E18TAG1
Standard Alternator: Leroy Somer LSA47.2M7 Leroy Somer LSA47.2M7
Controller: Deep Sea Electronics 8610 MKII Deep Sea Electronics 8610 MKII
Runtime @ 75% Load: 27.1 hours 27.1 hours
Fuel Tank Capacity - Usable: 671 gal 2,540 L
Skidded Dry Weight: 17,482 lbs 7,928 kg
Skidded Wet Weight: 23,375 lbs 10,600 kg
Trailered Dry Weight: 19,951 lbs 9,048 kg
Trailered Wet Weight: 25,844 lbs 11,720 kg
Skidded Dimensions: 204.8 × 73 × 109 in 5.2 x 1.9 x 2.8 mm
Trailered Dimensions: 260 × 102 × 118.8 in 6.6 x 2.6 x 3 mm
Sound Rating in db: 75dB(A) @23ft (7m) &75% PRP 75dB(A) @23ft (7m) &75% PRP
Operating Temperature Range: -40 to 158 -40 to 70
Emissions Compliance: Tier 4 Final Tier 4 Final
Fuel Type: Diesel Diesel
Power Source: 18.1 L 18.1 L
