Mobile Generator | 75kVA / 60kW | Diesel | 4.5L

Model #: MDG75DF4

Request Pricing
Spec Sheet (PDF) Owner Owner's Manual Parts Manual Parts Manual Mobile Linecard (PDF)

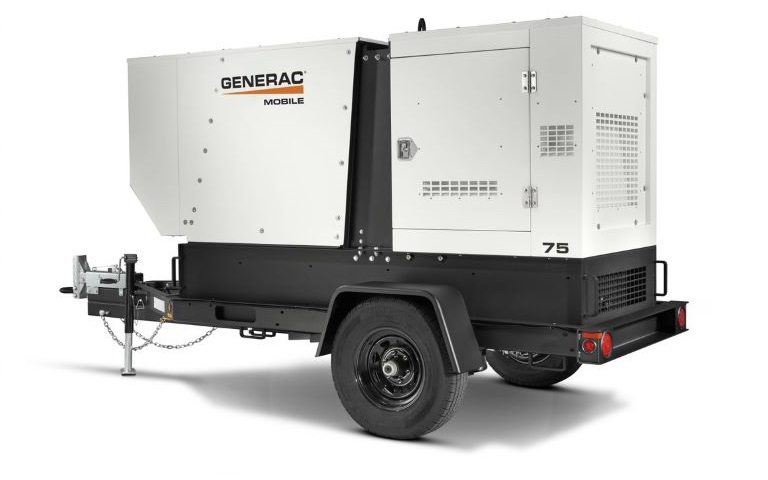

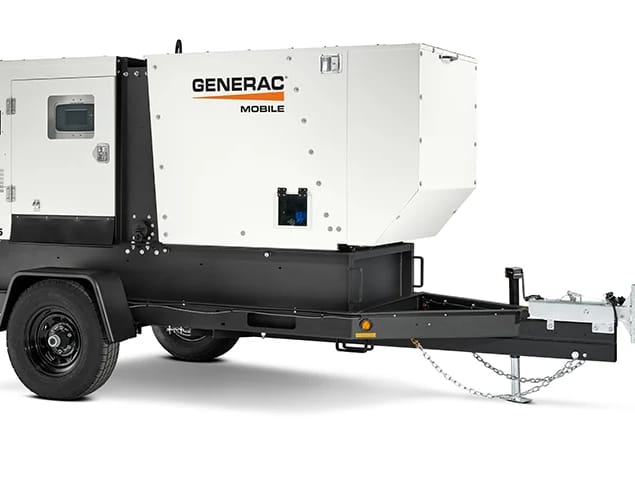

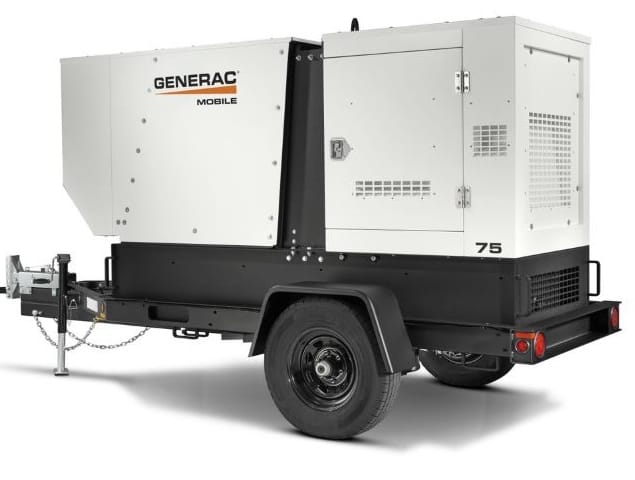

Mobile Generator | 75kVA / 60kW | Diesel | 4.5L

A Final Tier 4 John Deere engine and single to three-phase selector switch make this generator powerful and versatile.

Powerful

  • Final Tier 4 John Deere engines
  • Cold weather options allow for operation in extreme cold conditions
  • Parallel up to 32 generators for a scalable power solution with ultimate versatility

Easy to Use

  • Simplified Controller- Deep Sea® DSE7310 with an easy-to-read status screen
  • A powerful processor with intuitive operation and real time operational data
  • Programmable controller providing flexible application capabilities

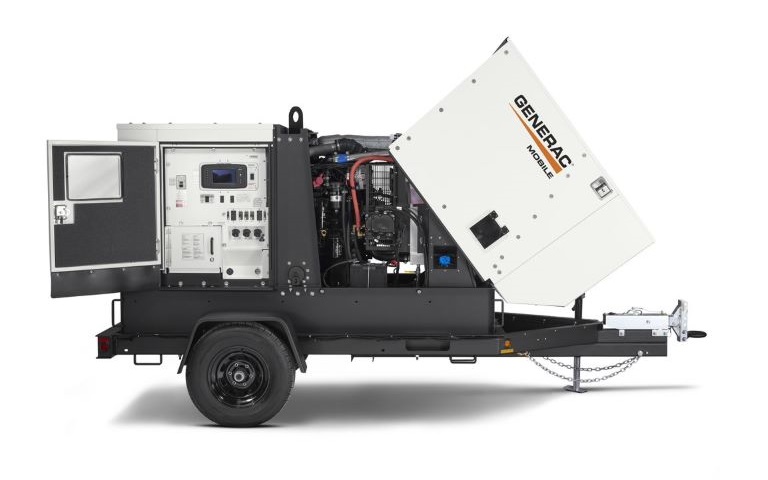

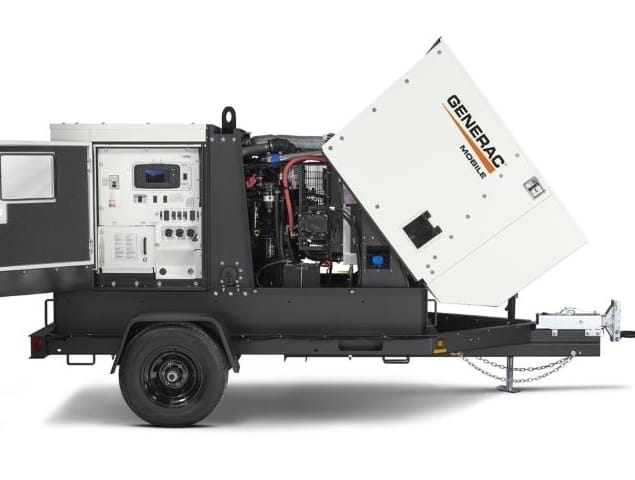

  • Flip hood design provides easy access for maintenance
  • No diesel particulate filter (DPF) needed

Safe

  • Standard safety features include e-stop, safety switch for lug door and safety switch for phase switch
  • Fan guards and exhaust blankets
  • Optional safety features include 120% containment of fluids, leak detection, interior and control panel lighting
  • 13 warning and shutdown features

Specifications

Units:
kW/kVA Prime: 60kW/75kVA 60kW/75kVA
kW/kVA Standby: 68kW/85kVA 68kW/85kVA
Engine: John Deere 4045HFG04 John Deere 4045HFG04
Standard Alternator: Marathon Electric 361PSL1647 Marathon Electric 361PSL1647
Controller: Deep Sea Electronics 7310 MKII Deep Sea Electronics 7310 MKII
Runtime @ 75% Load: 39 hours 39 hours
Fuel Tank Capacity: 146 gal 552 L
Skidded Dry Weight: 3,830 lbs 1,740 kg
Skidded Wet Weight: 4,790 lbs 2,170 kg
Trailered Dry Weight: 4,530 lbs 2,055 kg
Trailered Wet Weight: 5,490 lbs 2,490 kg
Skidded Dimensions: 119 x 40 x 62 in 3.02 x 1.02 x 1.57 mm
Trailered Dimensions: 170 x 69 x 80 in 4.31 x 1.75 x 2.03 mm
Sound Rating in db: 74dB(A) @ 23ft (7m) @ Prime Power 74dB(A) @ 23ft (7m) @ Prime Power
Operating Temperature Range: -40 to 158 -40 to 70
Emissions Compliance: Tier 4 Tier 4
Fuel Type: Diesel Diesel
Power Source: 4.5 L 4.5 L
