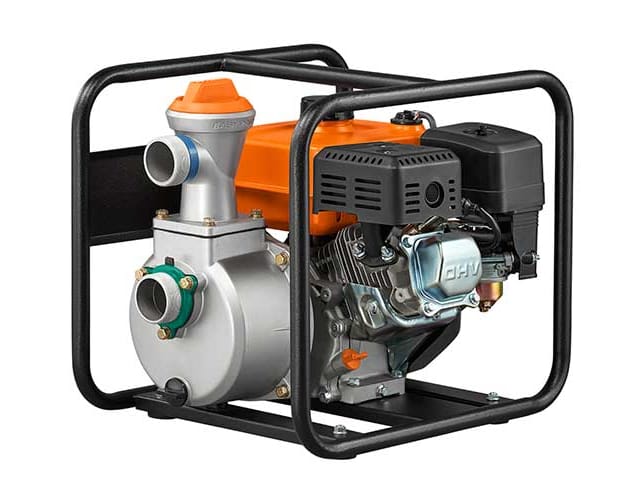

Tackle big jobs faster with a CW20K, featuring a powerful Generac 208cc OHV engine and custom Easy Prime™ funnel design for quick and easy priming. Its durable silicon carbide mechanical seals and cast iron volute and impeller keep this pump running longer and more efficiently.
Durable 7/8” frame to withstand the harsh environment
Generac 208cc engine with low-oil shut down
Onboard instructions with icons of key touch points make this pump easy to use
Easy Prime™ custom funnel design with tethered priming cap for quick and easy priming
Color-coded suction and discharge ports to ensure the correct hose connections (Blue = Discharge; Green = Suction)
Easily pumps up to 158 gallons per minute
Silicon carbide mechanical seal for long life

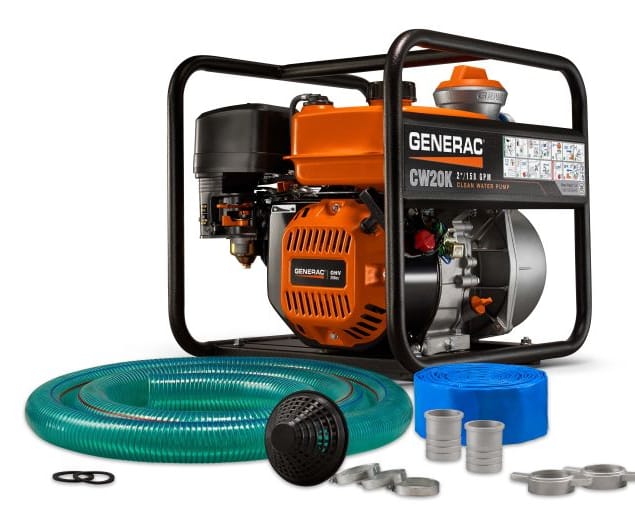

All inclusive kit includes 12 foot suction hose, 25 foot discharge hose, and strainer
For the most accurate results, enter your serial number.
| File Type | Manual (PDF) | Item Number | Download |
|---|---|---|---|
| Loading... |
Fuel Tank Capacity (gal): 0.95
Fuel Tank Capacity (l): 3.6
Oil Capacity (qt): 0.6
Spark Plug P/N: 0H33750169
Max Flow (gal/min): 158
Max Total Head (ft): 108
Max Suction Lift (ft): 26
Suction Port Diameter (npt): 2
Discharge Port Diameter (npt): 2
Discharge Hose Length (ft): 25
Suction Hose Length (ft): 12
