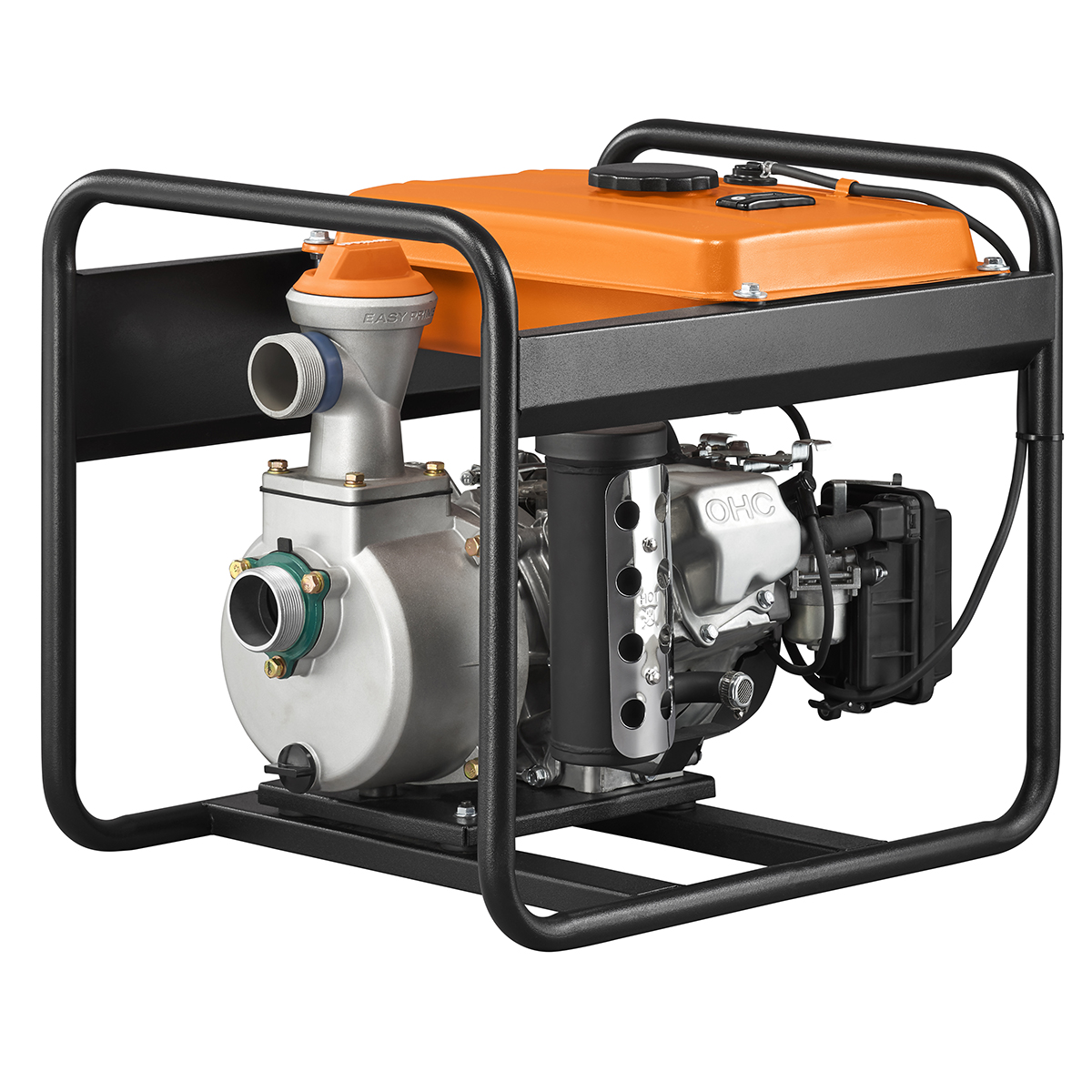

Specifically engineered to handle muddy or sandy water, the ST20-S is powered by a 169cc Generac G-Force engine that pumps up to 158 gallons per minute. With features such as low-oil shut down, custom Easy Prime™ funnel design for quick and easy priming, and a large fuel tank with integrated fuel gauge, it’s both durable and easy to use.
Durable 1” frame to withstand the harsh environment
Powerful Generac G-Force 169cc engine with low-oil shut down
Large 3-gallon fuel tank with incorporated fuel gauge delivers approximately 5 hours runtime
Onboard instructions with icons of key touch points make this pump easy to use
Easy Prime™ custom funnel design with tethered priming cap for quick and easy priming
Color-coded suction and discharge ports to ensure the correct hose connections (Blue = Discharge; Green = Suction)
Easily pumps up to 158 gallons per minute
Silicon carbide mechanical seal for long life
For the most accurate results, enter your serial number.
| File Type | Manual (PDF) | Item Number | Download |
|---|---|---|---|
| Loading... |
Product Series: Generac PRO
Fuel Tank Capacity (gal): 3
Oil Capacity (l): 0.57
Spark Plug P/N: 0H33750169
Max Flow (gal/min): 158
Max Total Head (ft): 108
Max Suction Lift (ft): 26
Solids Handling (inch): 33
Suction Port Diameter (npt): 2
Discharge Port Diameter (npt): 2
